2015
Jinma
Diesel Tractors 25HP , 28HP
OR 60HP with EPA APPROVED PERKINS ENGINES
These are the tractors we are
promoting for the U.S. market because they have the quality and
features expected from U.S. buyers.
MINIMUM OF 60 DAY WAITING
LIST. TAKING ORDERS NOW! CONTACT
US FOR MORE INFORMATION

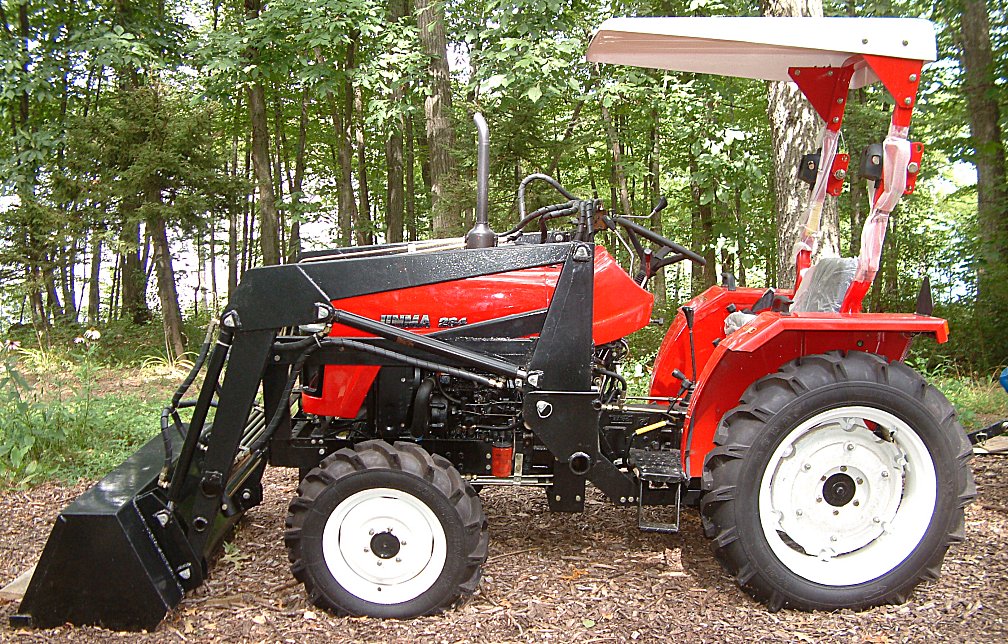

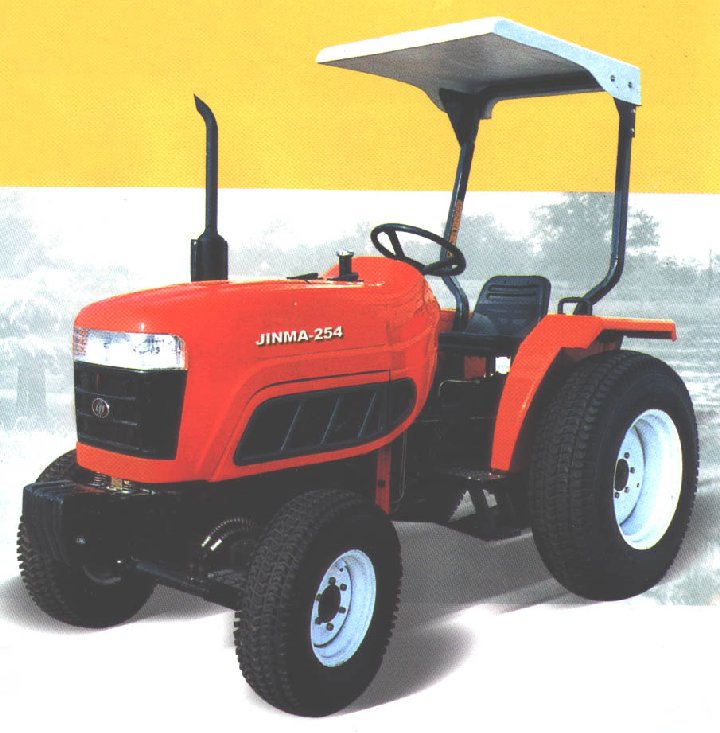

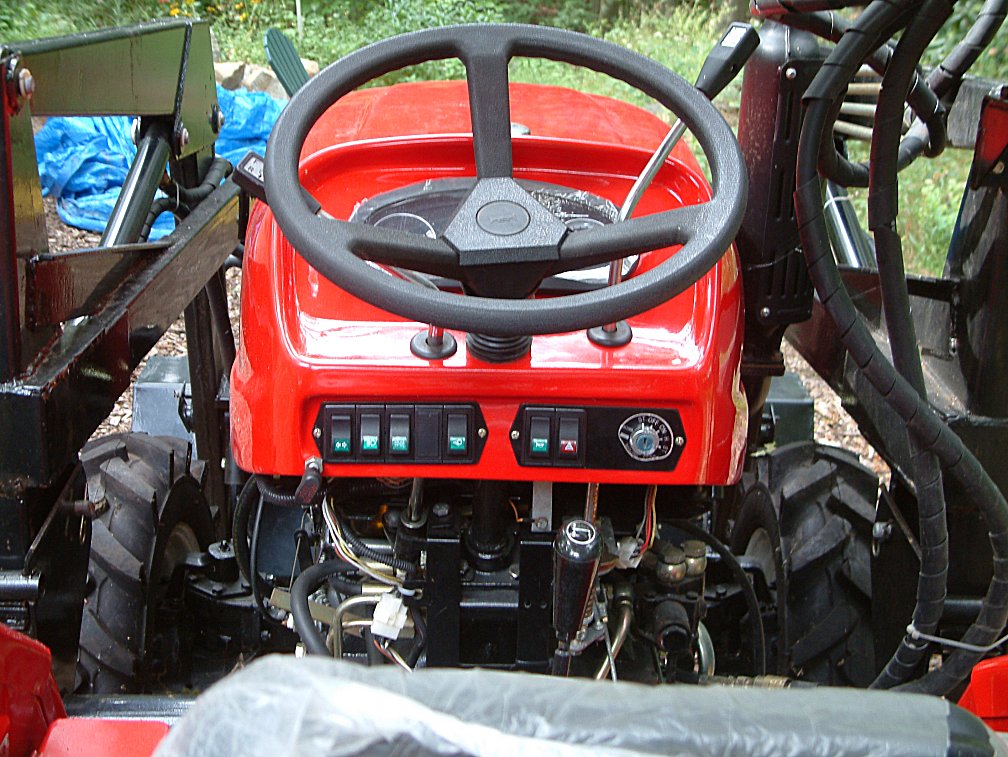

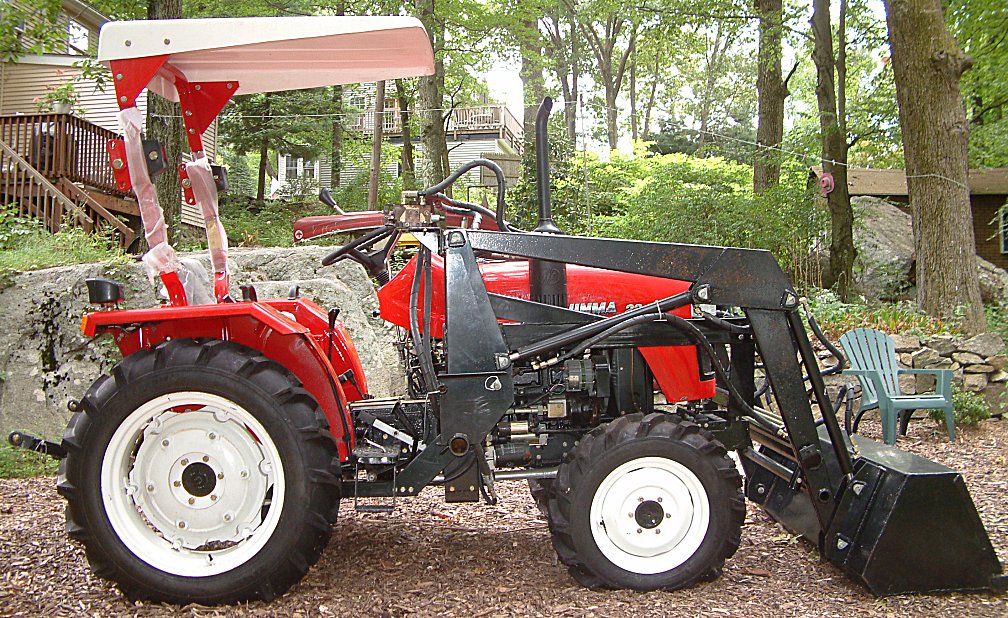

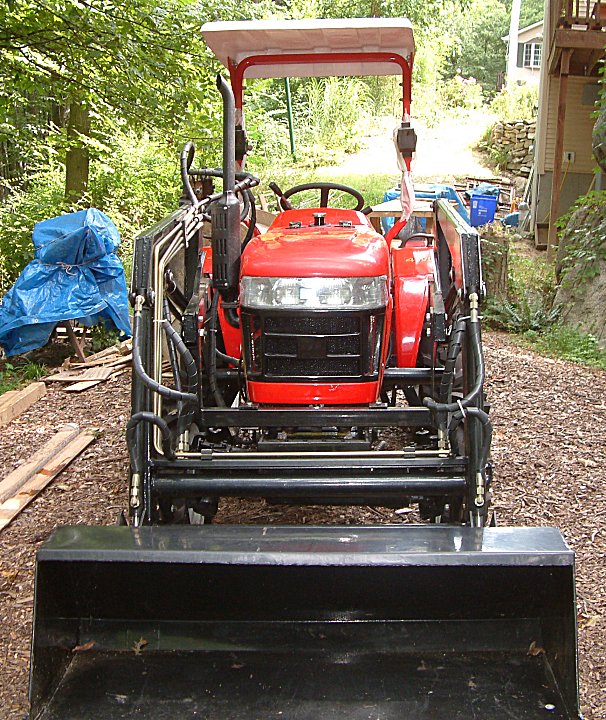

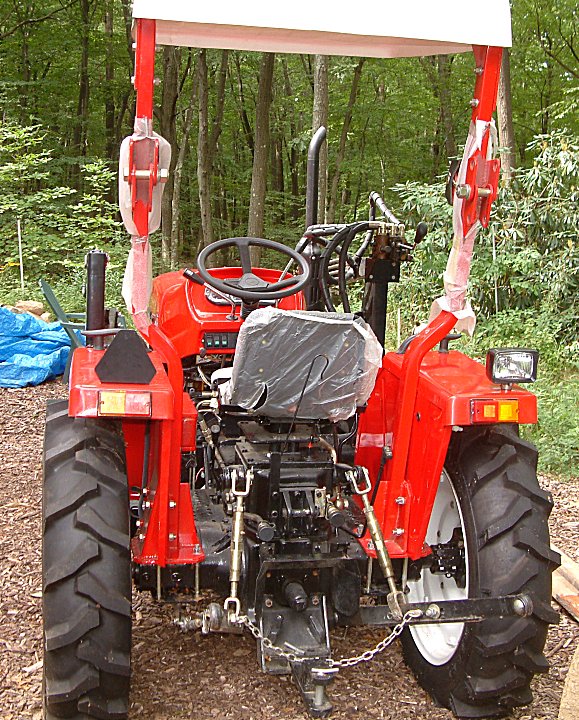

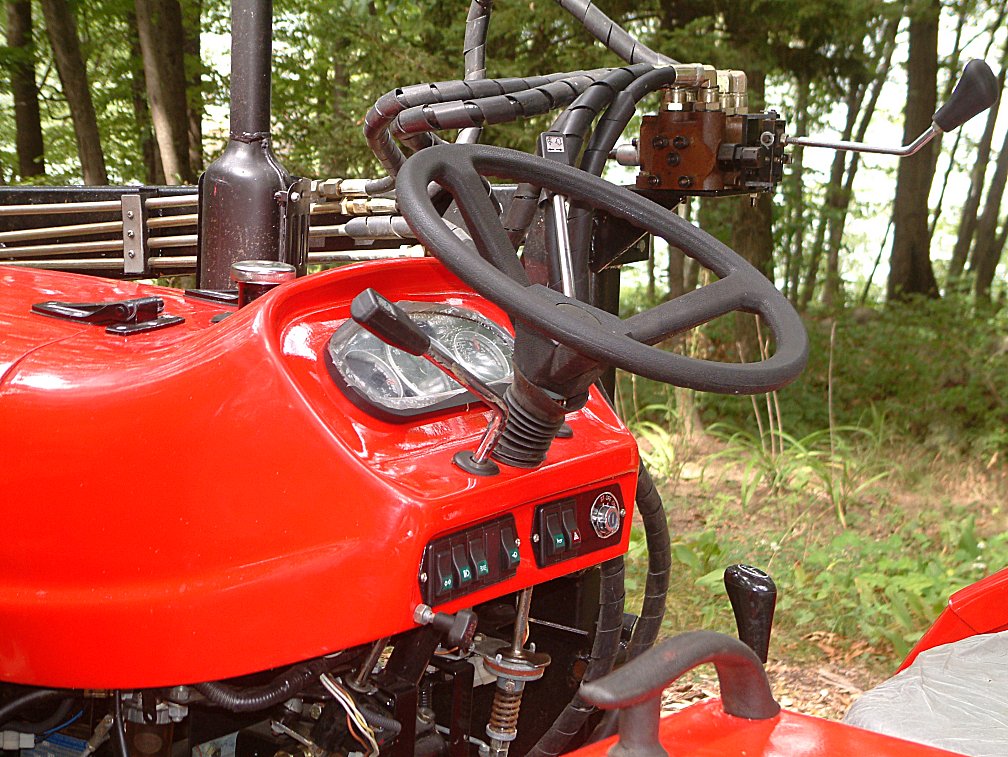

Jinma 254 Tractor with Optional
Front Loader
CLICK EACH PICTURE
TO ENLARGE
(pictures
are of a 284, but it looks the same as a 254)
**********************************************

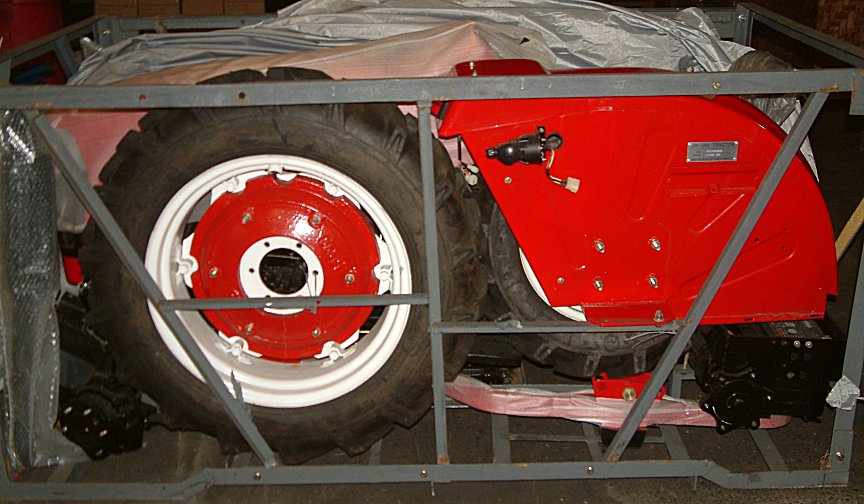

25HP, 4WD, Ag tires; unassembled in crate
FRONT
LOADERS: JM-ZL-20 (for 20-28HP tractors); unassembled
in crate OUT
OF STOCK
FRONT LOADERS: JM-ZL-30 (for 35HP tractors);
unassembled in crate OUT

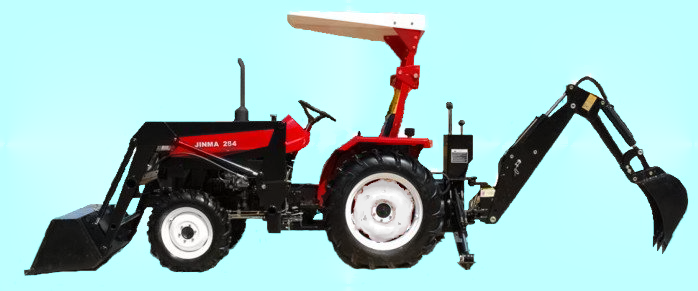

OF STOCK BACKHOES
7ft; 3-PT.
HITCH; unassembled in crate OUT
OF STOCK

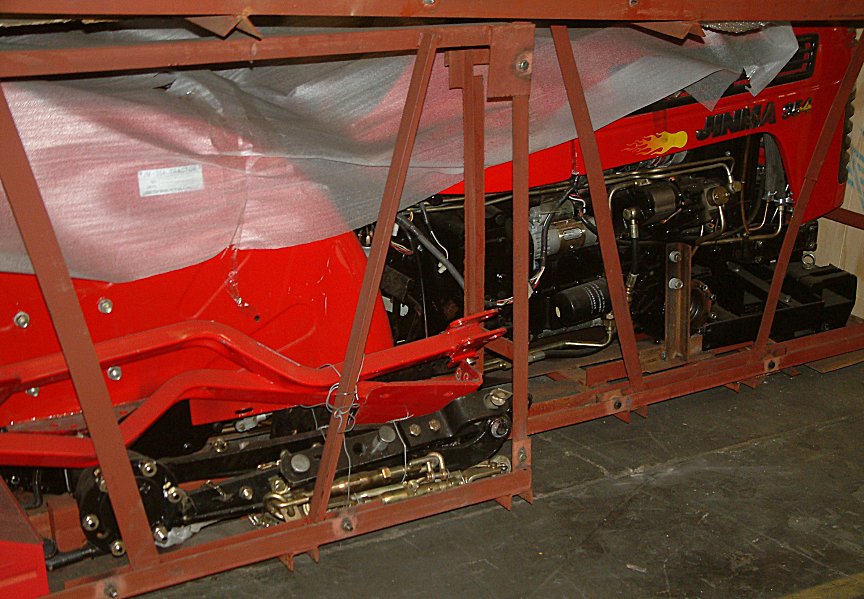

35HP, 4WD, Ag tires; unassembled in crate OUT
OF STOCK
These
Specs shown in U.S. Measurements
Inches, Pounds, Miles Per Hour, Revolutions Per Minute,
Pound/Force
Model
204
284
354
Drive
4 WD
4 WD
4 WD
Overall
Dimensions
L x W x H
104.9 x 48.6
x 51.1
117.7 x 50.7
x 56.6
123.8 x 57 x
80.7
Wheel Base
Front to Rear
59.4 / 61.4
63.9 / 64.6
72.1
Wheel
Width Front
37.4
41.3
47.2
Wheel
Width Rear
Adjustable
37.4/43.3
42/49.2
39.3/55
Ground
Clearance
10.8
11.6
11.4
Tire Size
Front
6 x 12
6 x 16
6 x 16
Tire Size
Rear
8.3 x 24
9.5 x 24
11.2 x 24
Tractor
Weight
Unloaded
2646
3009
3395
Forward
Speeds
.40 - 15
.40 - 15
1.1 -14.8
Reverse
Speeds
.54 - 6.4
.54 - 6.4
1.4 - 6.77
PTO Speeds
540/1000
540/1000
540/720
3 Point
Hitch
Cat. 1
Cat. 1
Cat. 1
Hitch Lift
Capacity
742
876
1113
Engine RPM
2200
2400
2400
Engine
Type
3 Cylinder.
Vertical
Water Cooled
4 Stroke Diesel
3 Cylinder.
Vertical
Water Cooled
4 Stroke Diesel
4 Cylinder.
Vertical
Water Cooled
4 Stroke Diesel
Clutch
Dual Stage
Dual Stage
Dual Stage
Manual
Gearbox HI/LO
3 Gear
6 Forward Speeds
3 Gear
6 Forward Speeds
4 Gear
Hi/Lo
8 Forward Speeds
Power
Steering
Standard
Yes
Yes
Yes
Brakes
Dry Shoe
Disk
Disk
TRACTORS
INCLUDE DUAL-STAGE CLUTCH, HYDRAULIC POWERING, ROPS, CANOPY,
540/1000 PTO, AND COMPLETE GAUGES
PLEASE
NOTE: ONLY EPA APPROVED TRACTORS CAN BE SOLD IN THE USA. NO OTHER TRACTORS ARE
ALLOWED.

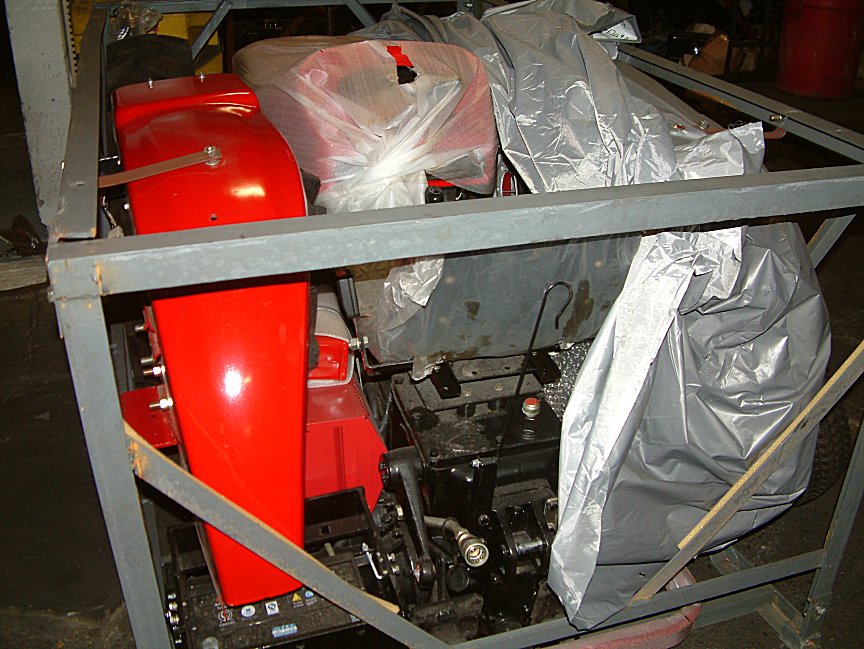

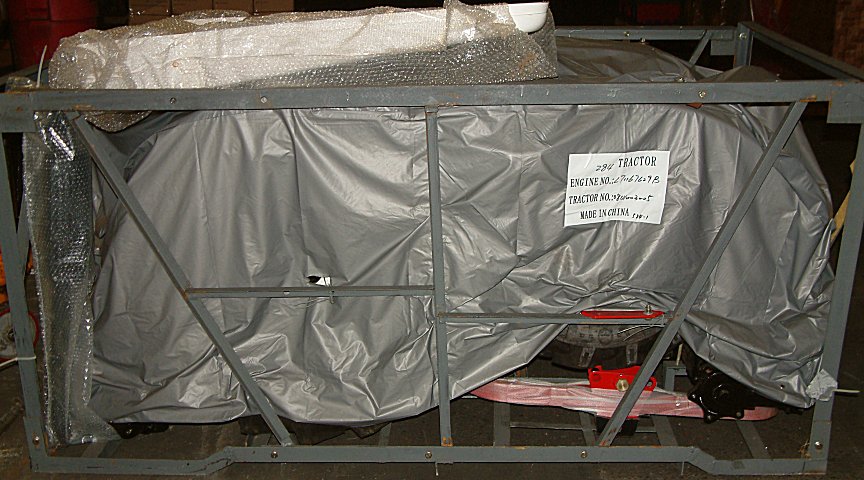

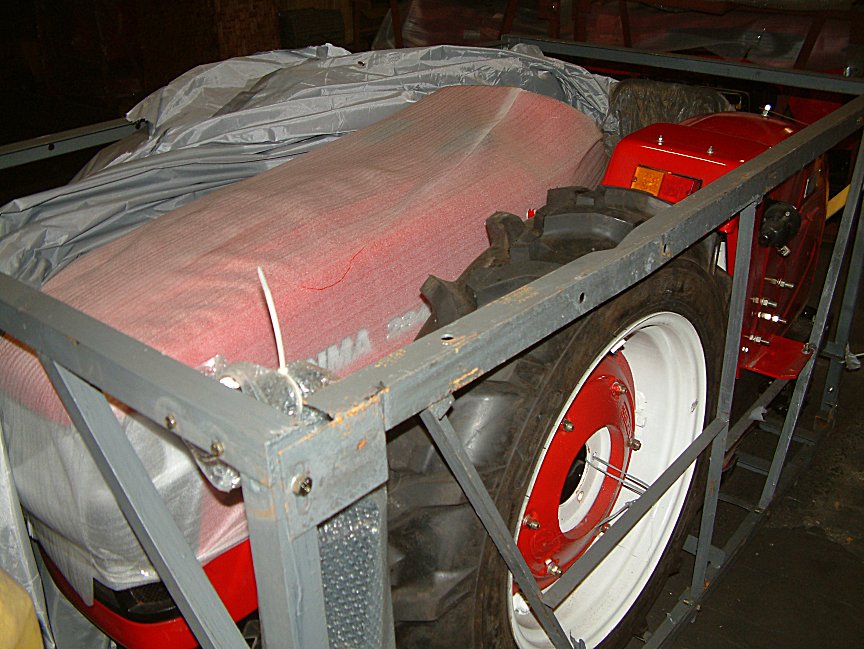

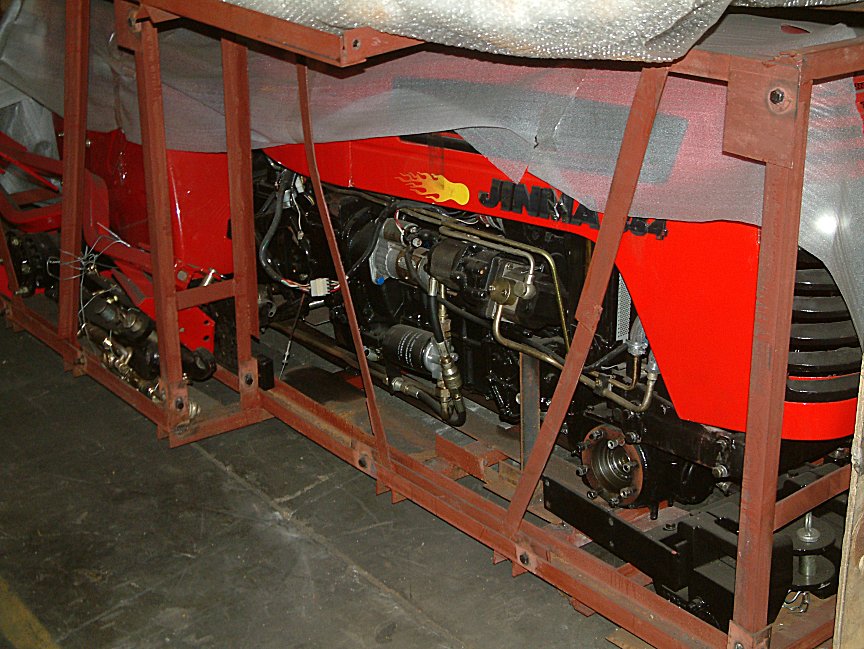

Attention buyers of crated tractors:
It is very important that when you receive a crated Chinese-made tractor that you drain it of all fluids and replace the fluids with American made products. NOTE: If these
tractors are shipped with a dry-packed battery (NO
electrolyte), it must be filled. Once filled with electrolyte, the battery must
also be charged. Picture shows 20-28HP tractors with turf tires, but tractors comes with
Ag tires.
Please
Click on each picture to enlarge

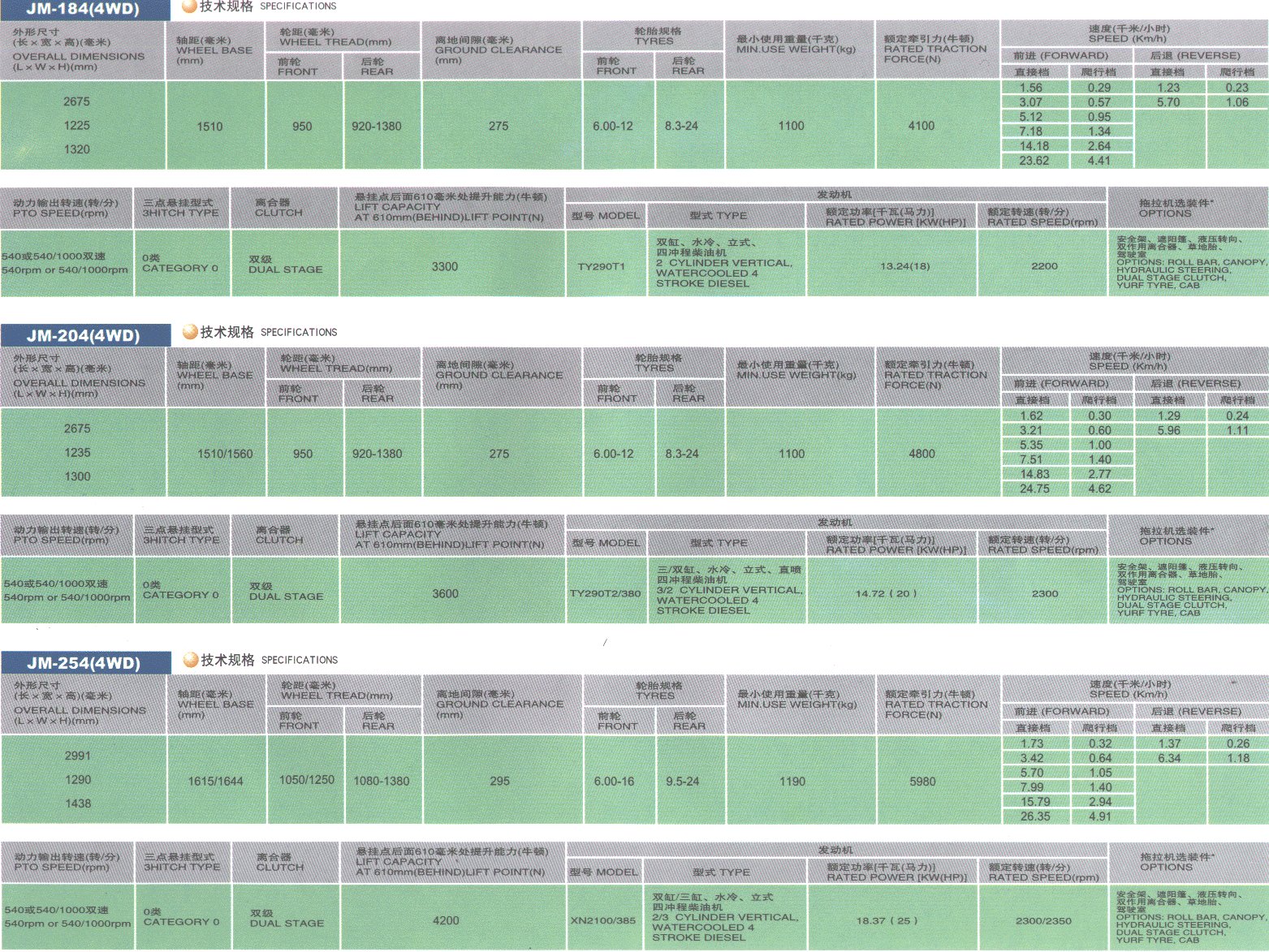

25/28HP
(4WD)
SPECIFICATIONS
EPA Approved! Includes Dual Stage Clutch, Power
Steering, ROPS, Canopy, and PTO. 12 Speed with Creeper Gear. (Shuttle Shift is optional).

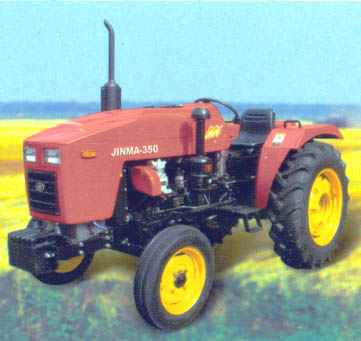

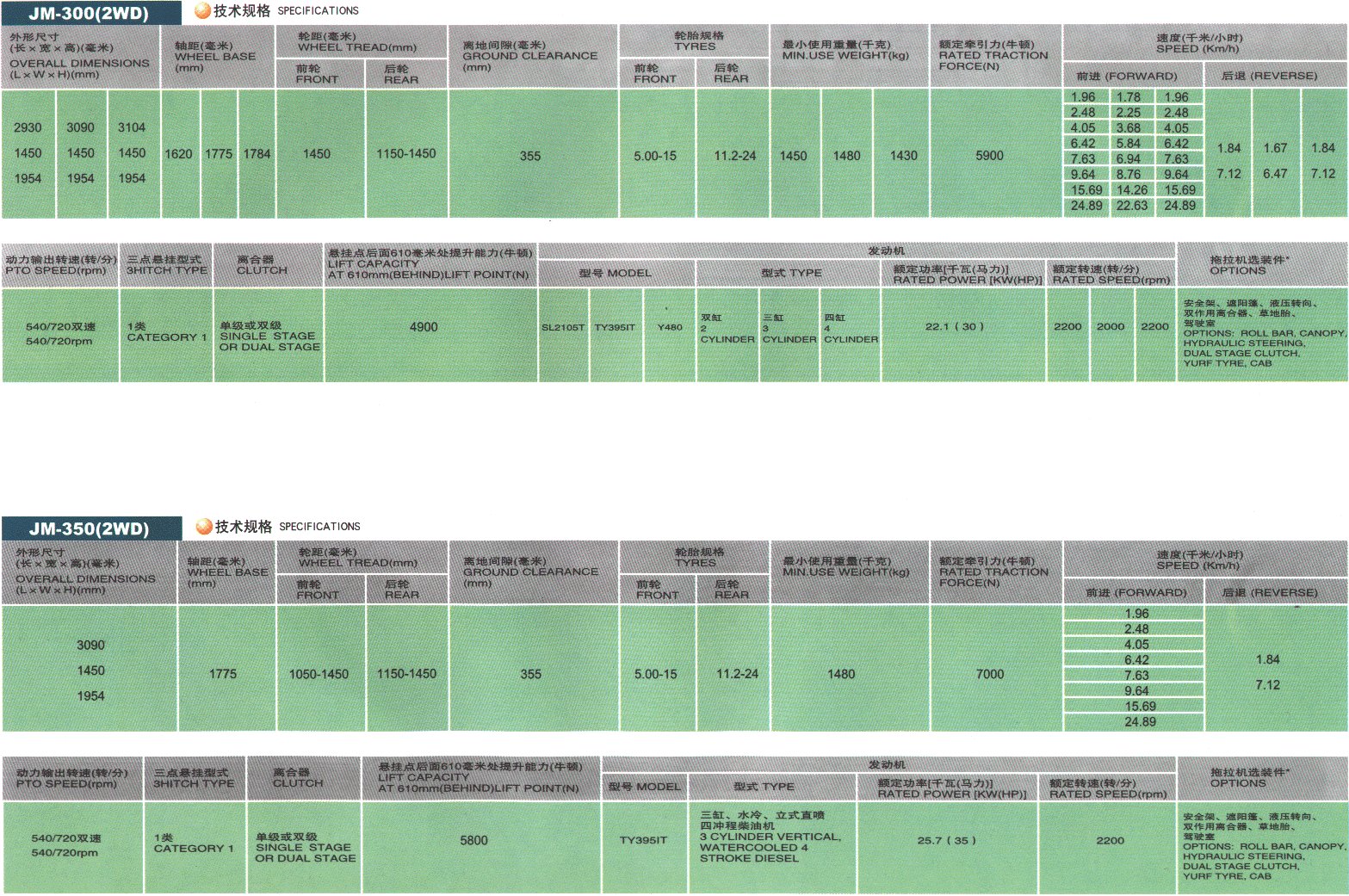

30/35HP(2WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

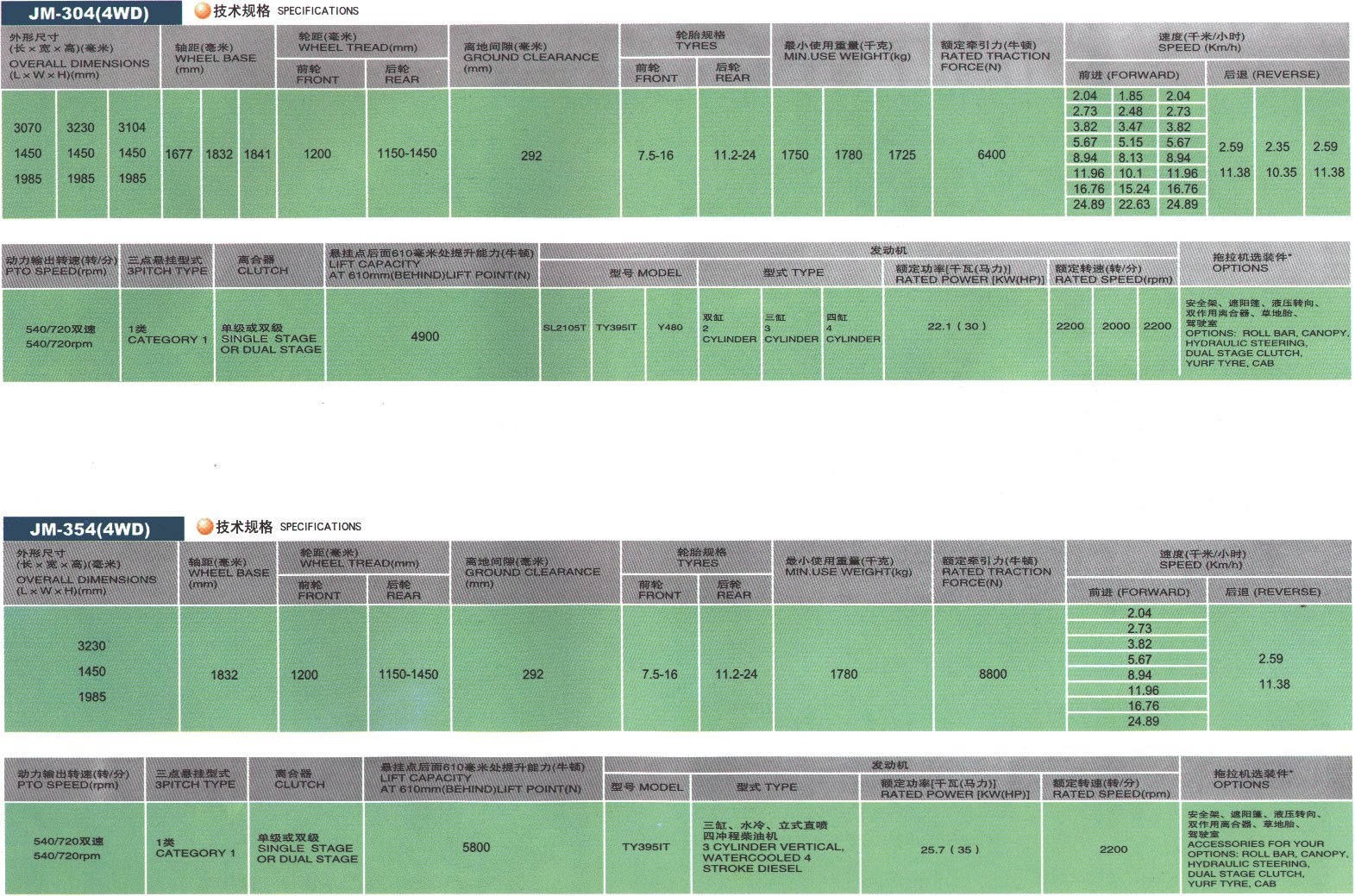

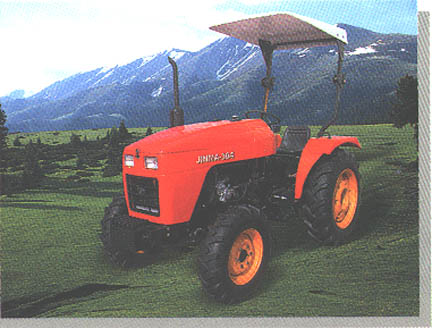

30/35HP
(4WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

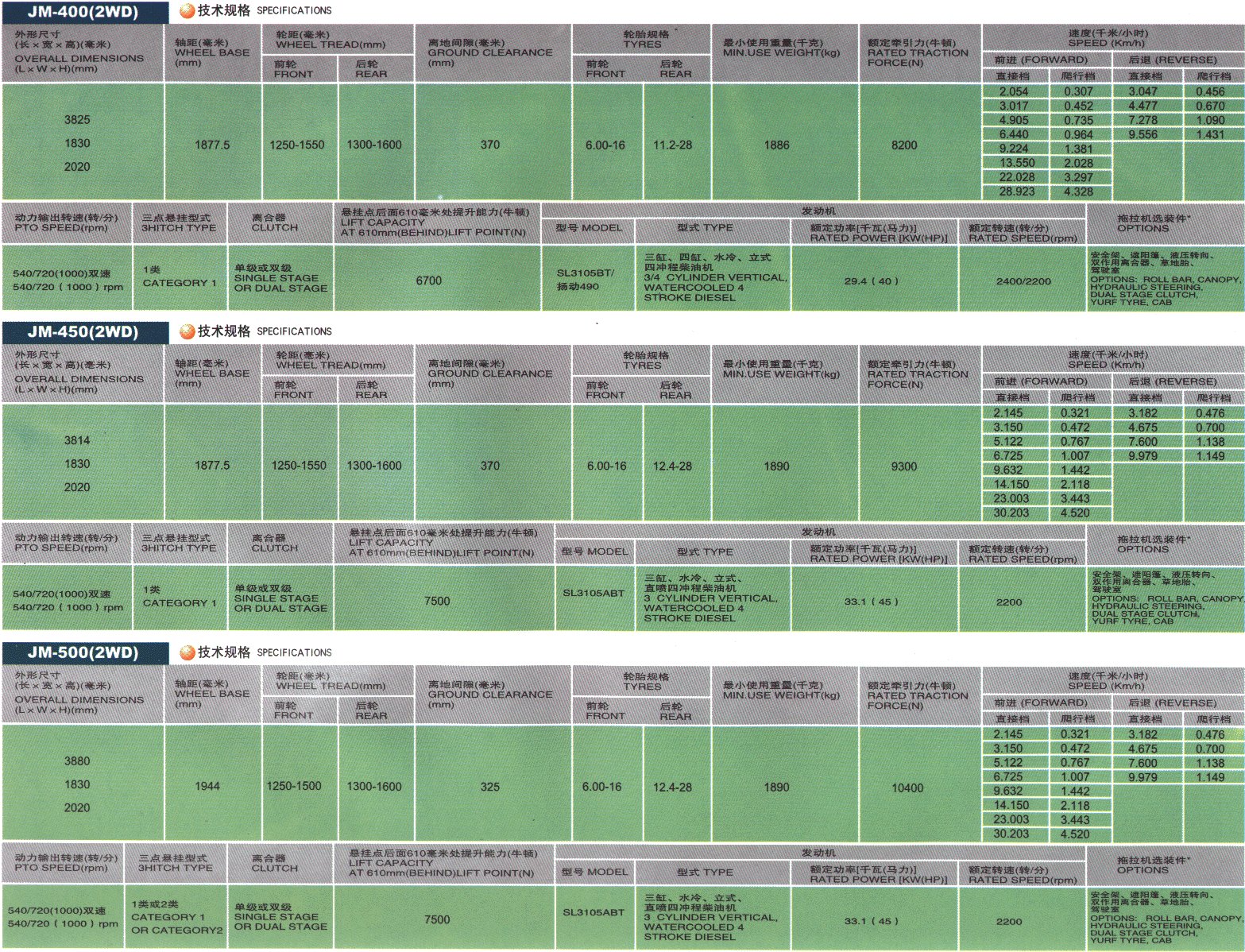

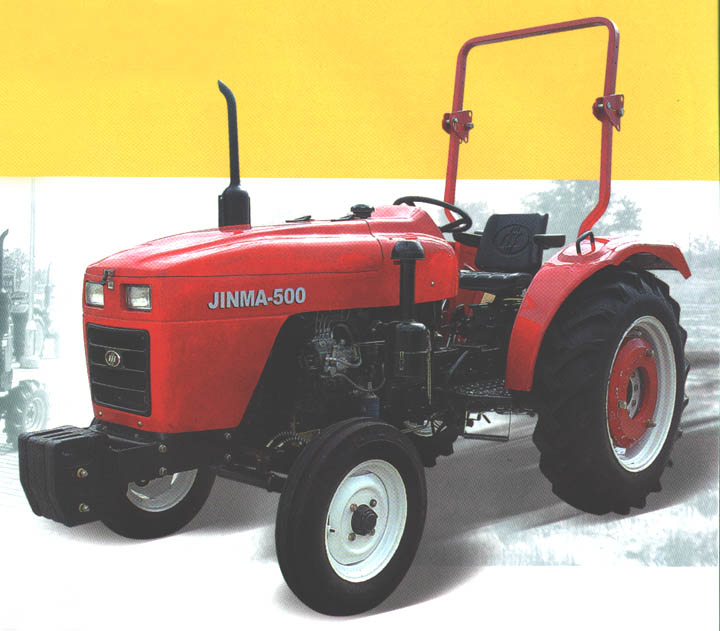

40/45/50HP
(2WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

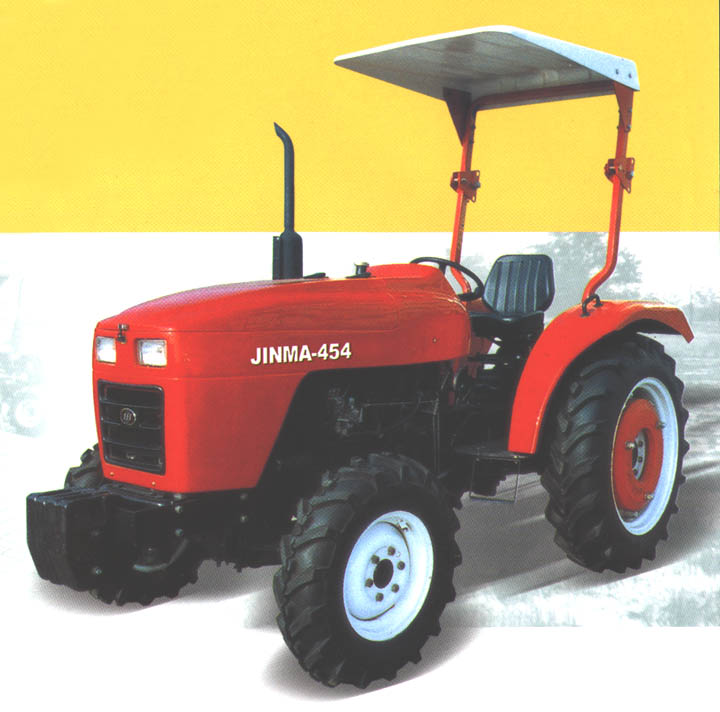

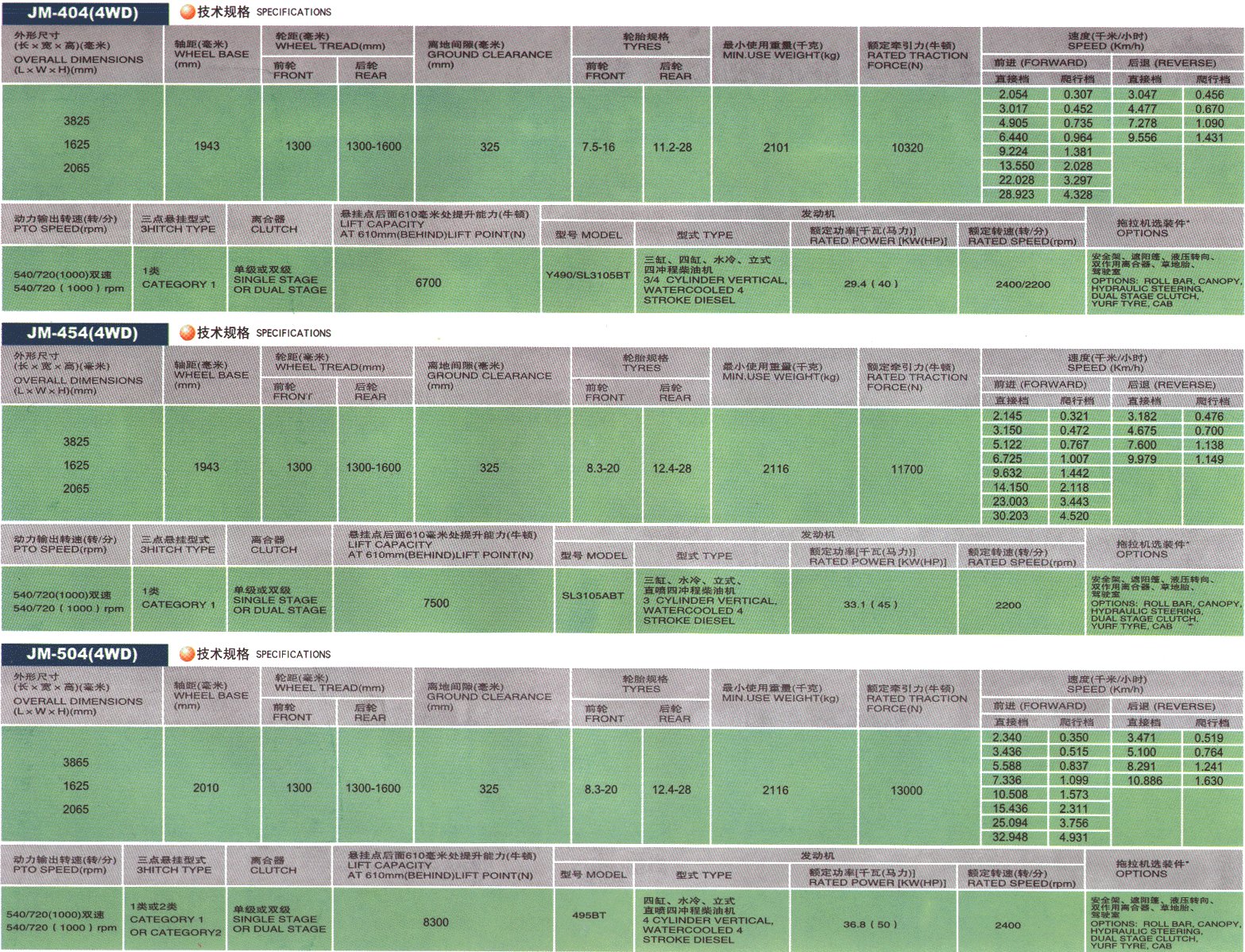

40/45/50HP (4WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

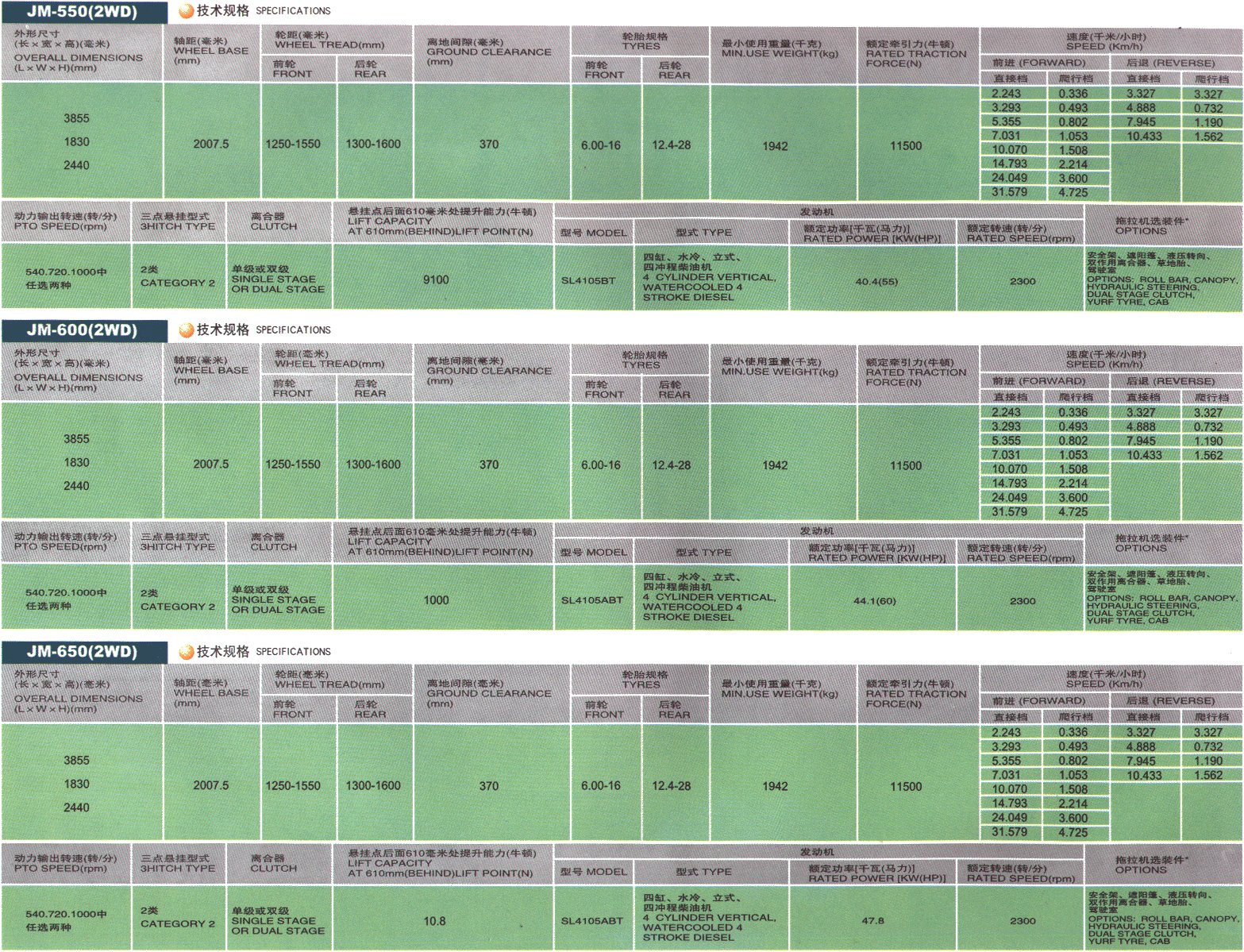

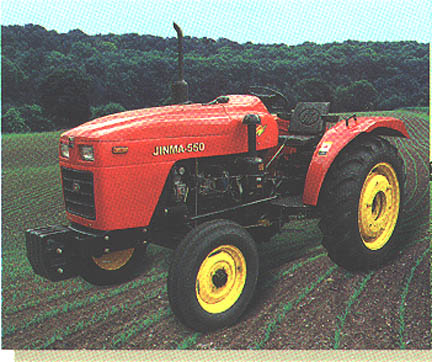

55/60/65HP (2WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

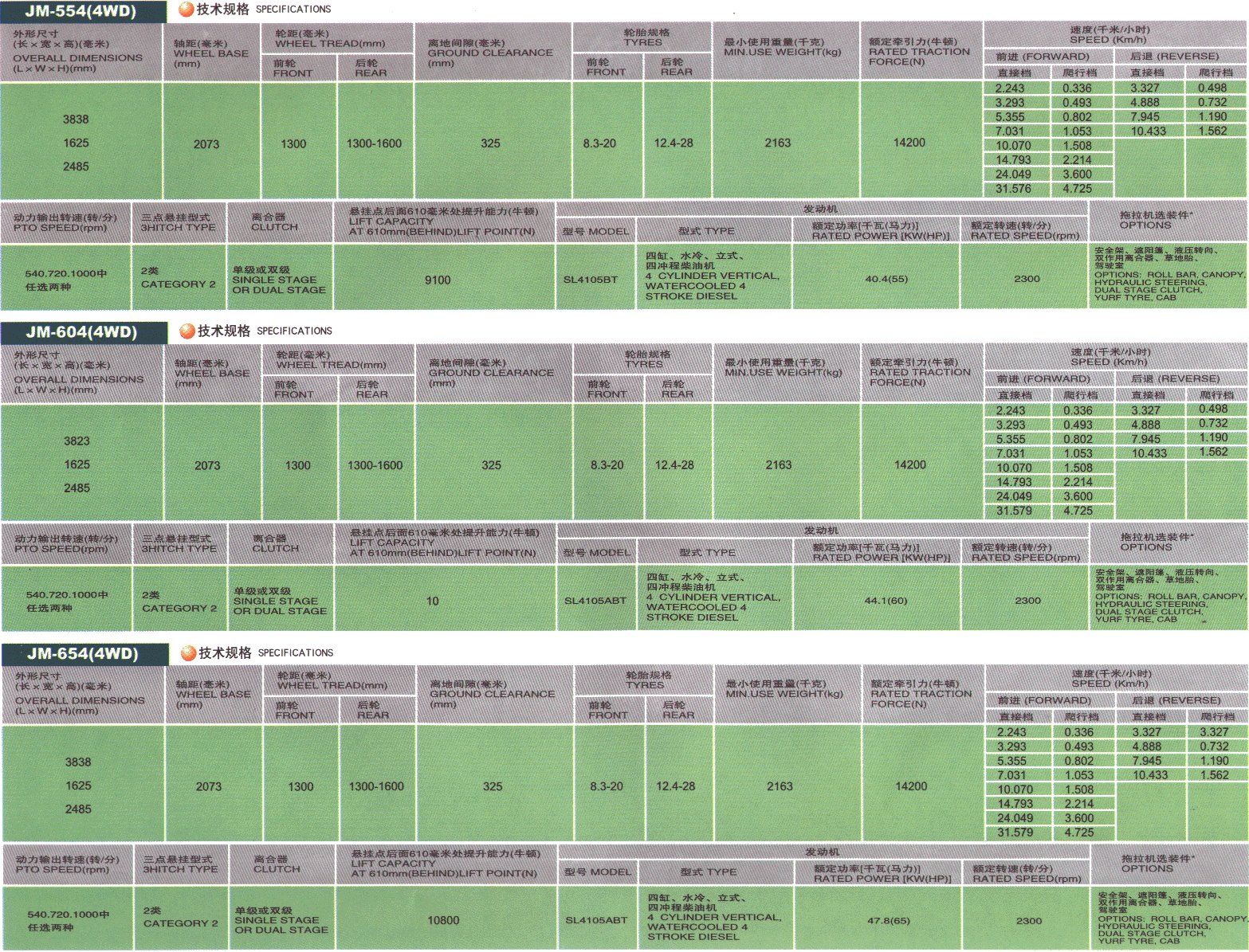

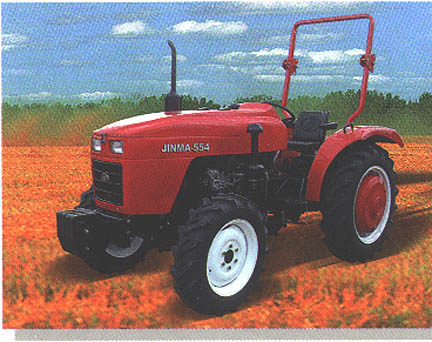

55/60/65HP (4WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

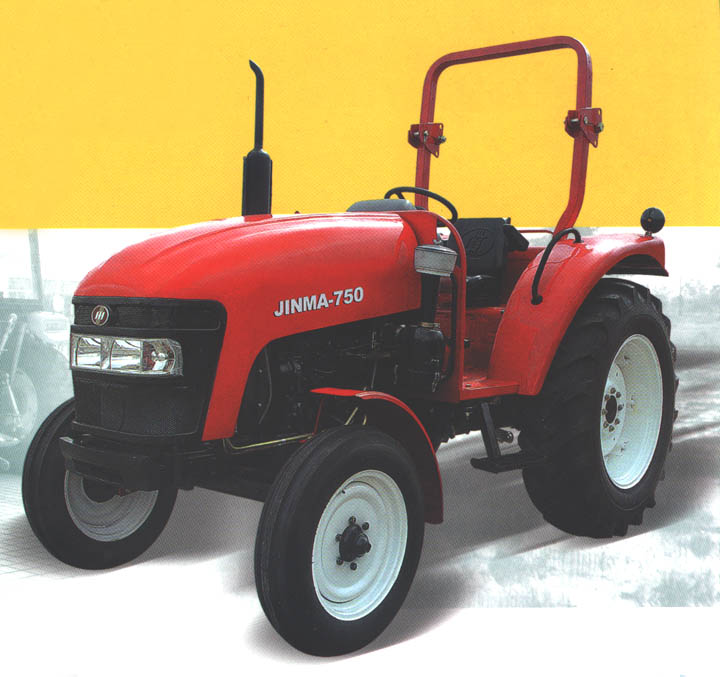

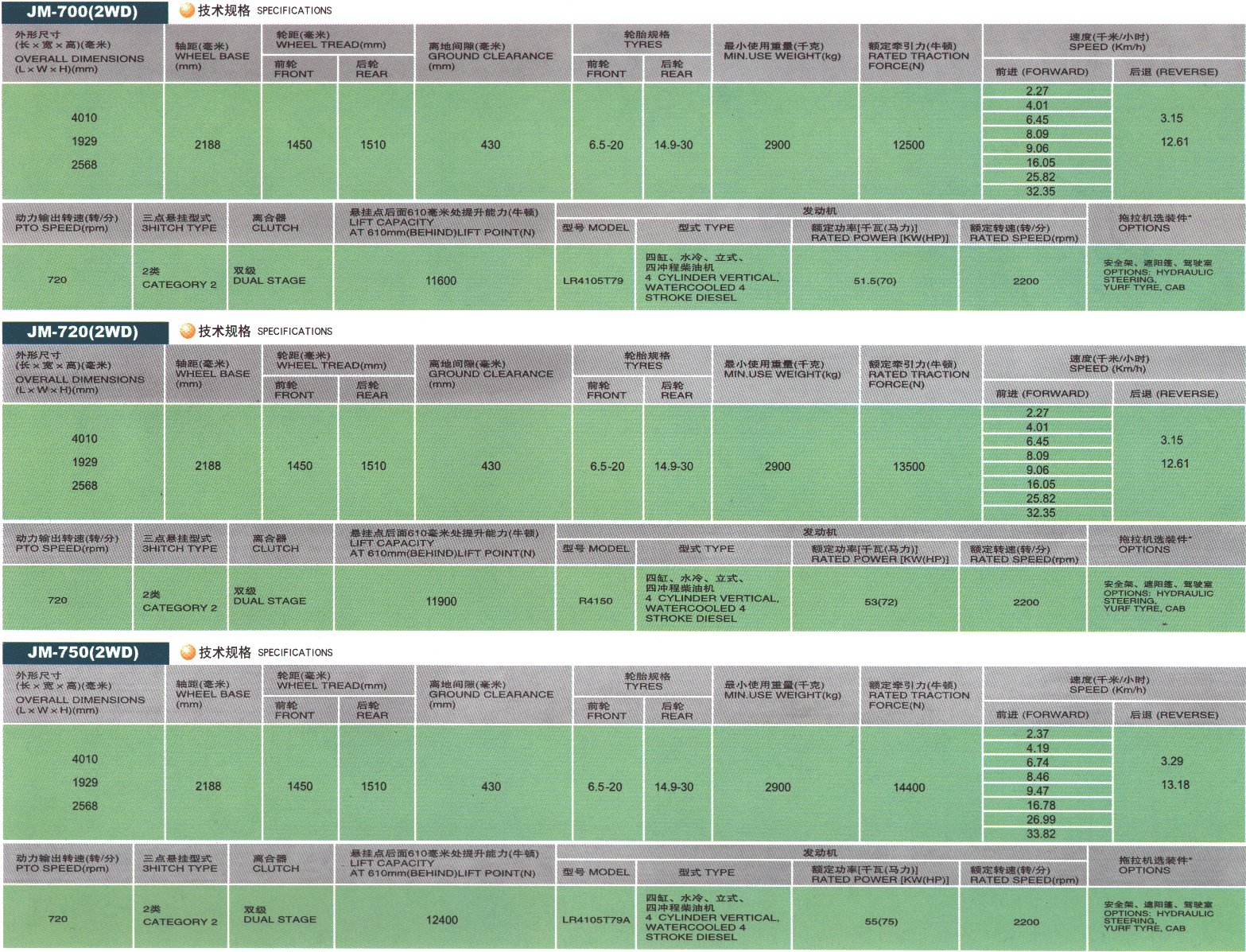

70/72/75HP (2WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

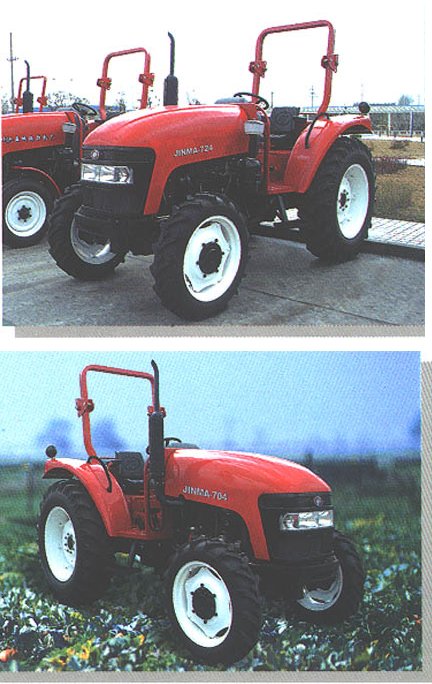

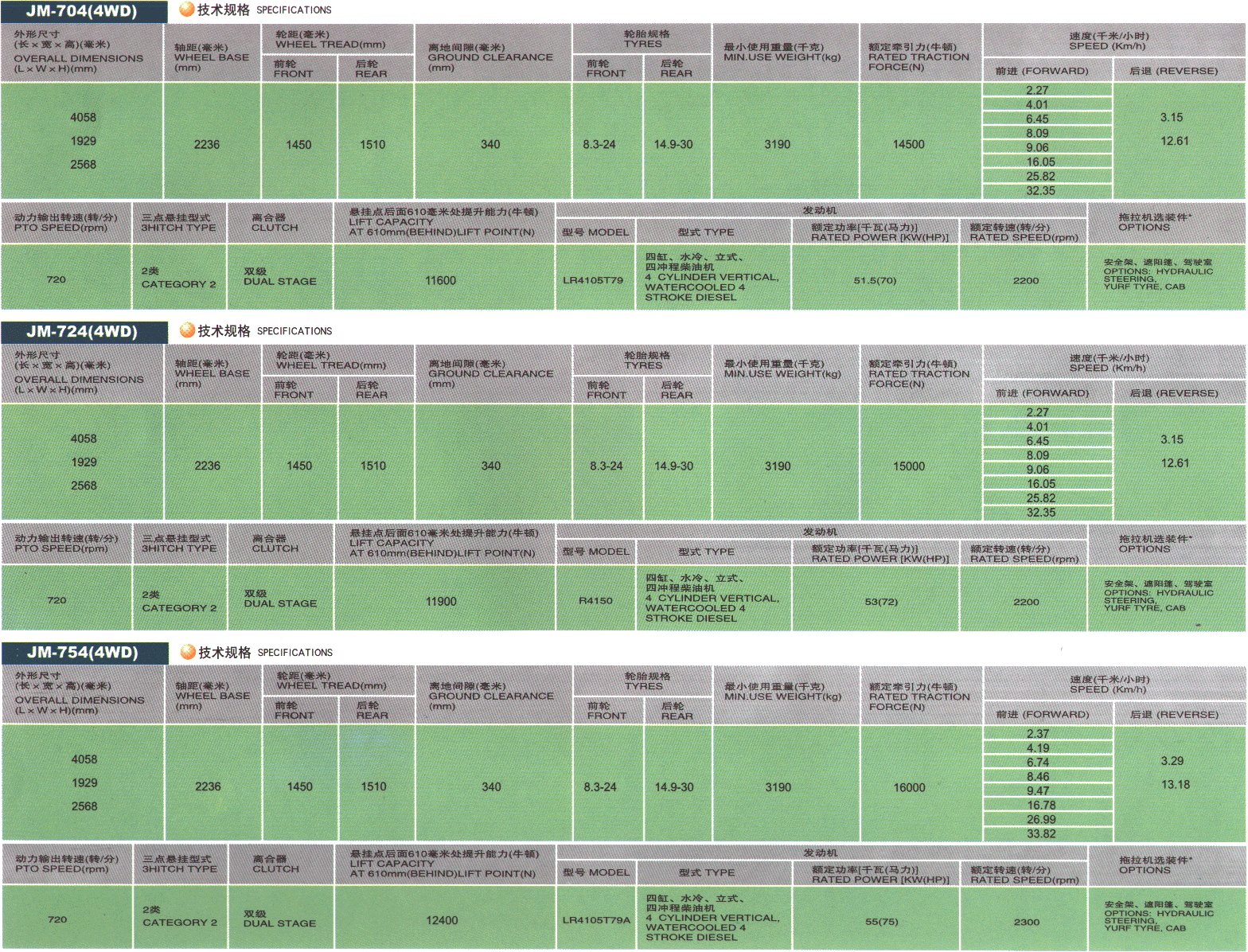

70/72/75HP (4WD)
SPECIFICATIONS
THESE TRACTORS ARE NOT
EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

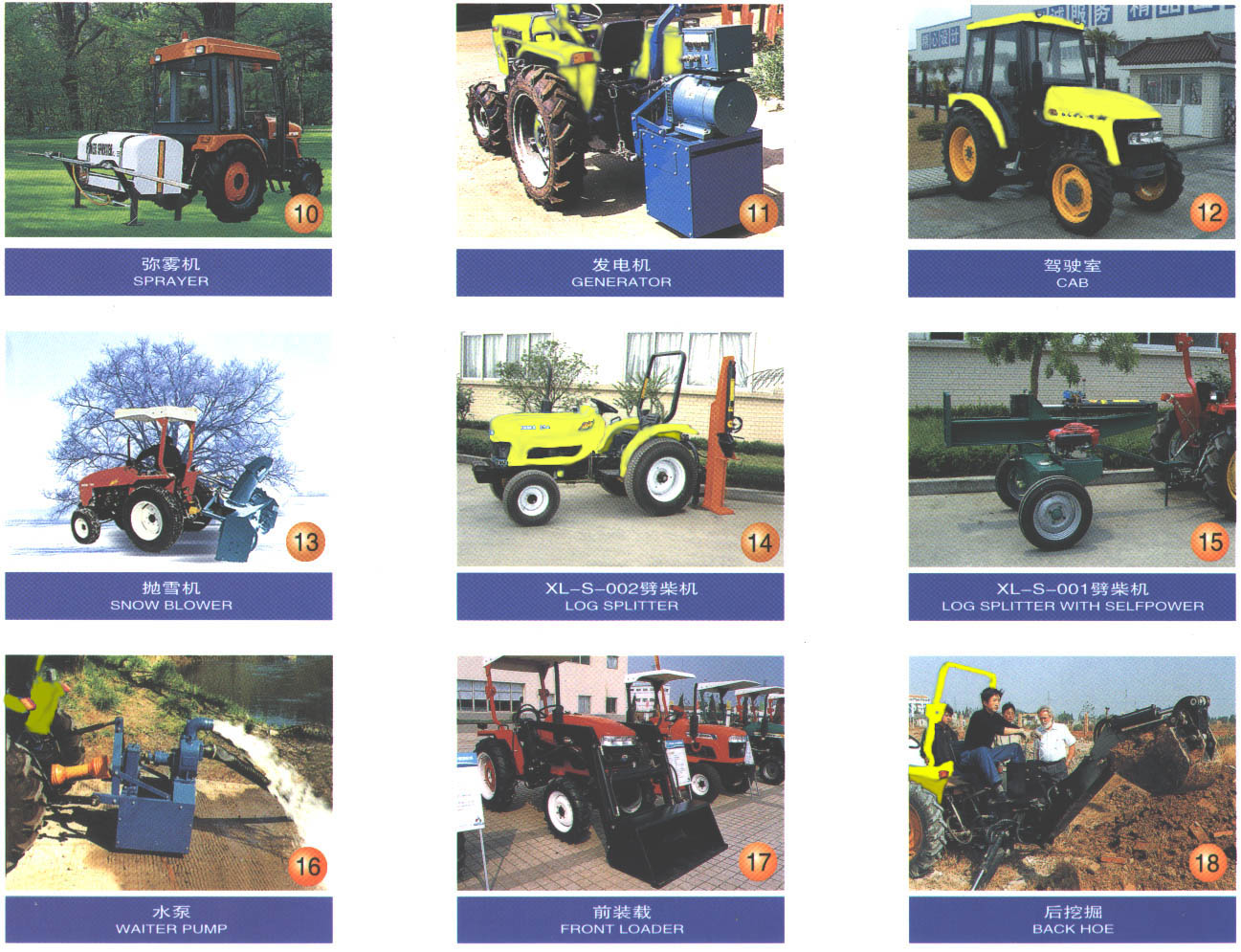

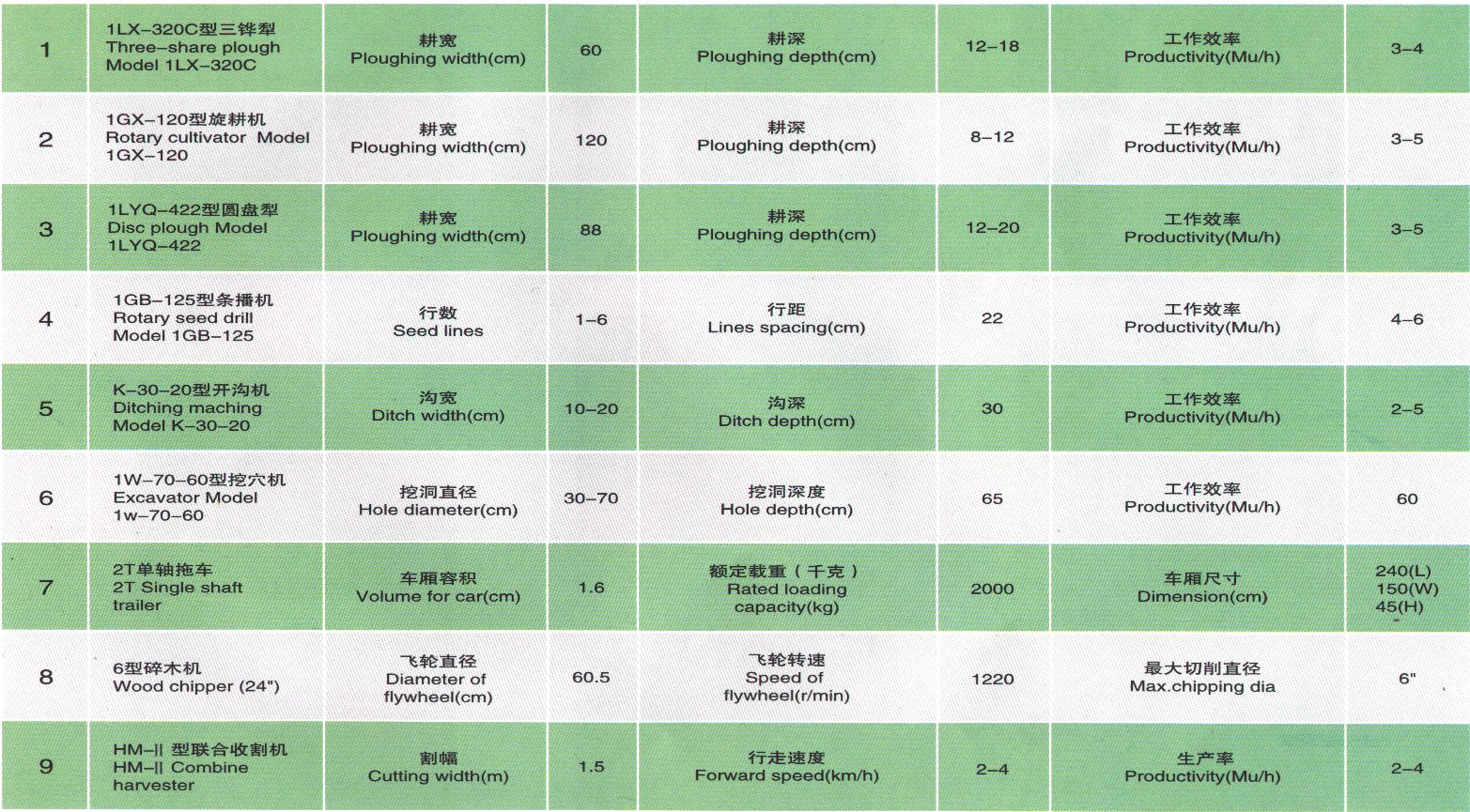

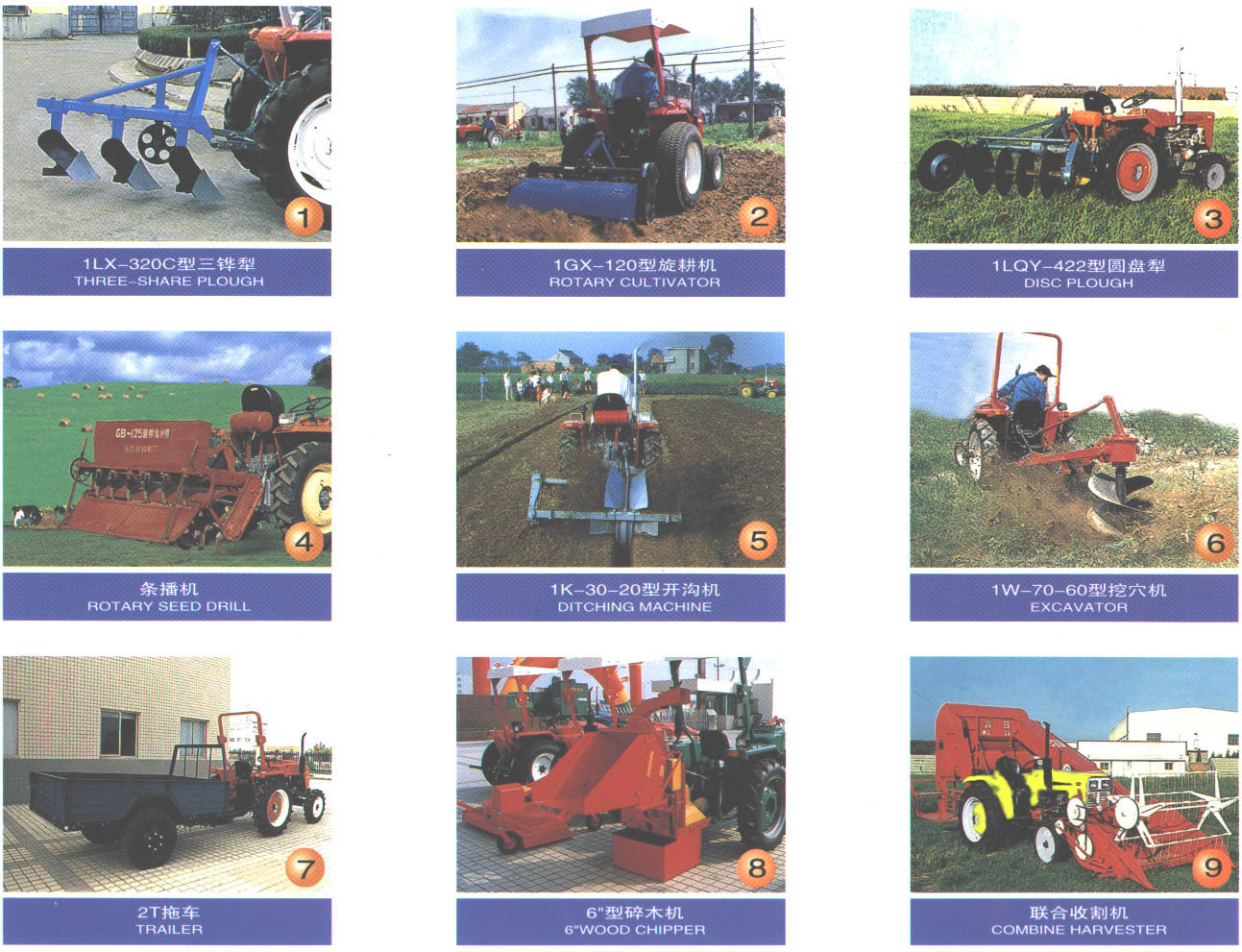

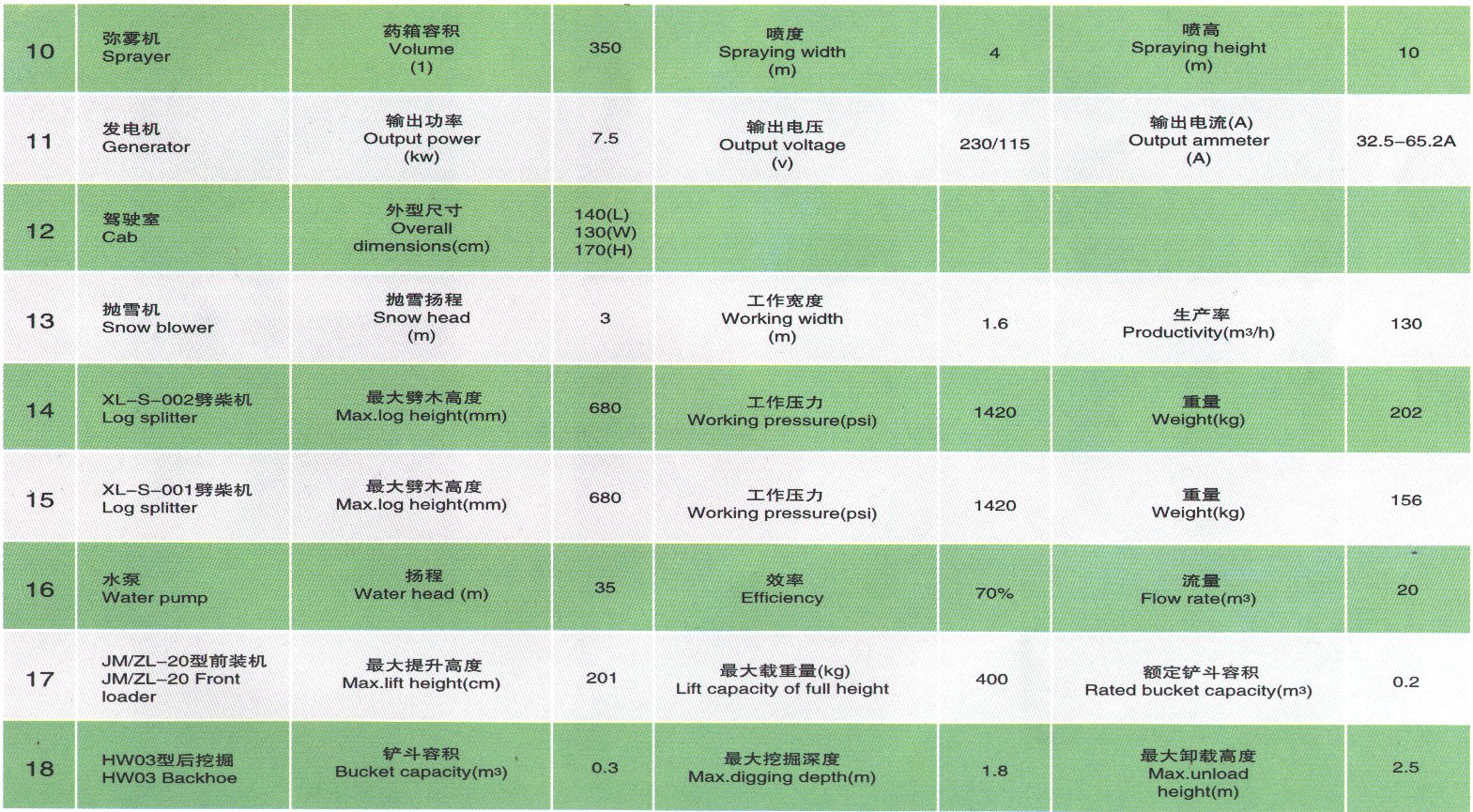

JINMA TRACTOR IMPLEMENTS
FRONT
LOADERS: JM-ZL-20 (for 20-28HP tractors); unassembled
in crate OUT
OF STOCK
FRONT LOADERS: JM-ZL-30 (for 35HP tractors);
unassembled in crate OUT
OF STOCK BACKHOES
7Ft; 3-PT.
HITCH; unassembled in crate OUT
OF STOCK WOOD
CHIPPERS; NOW 8" OUT
OF STOCK

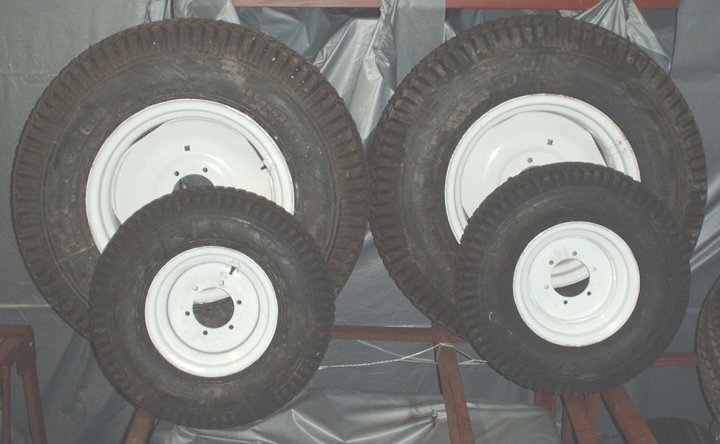

SET OF TURF TIRES w/ rims $949
+ shipping

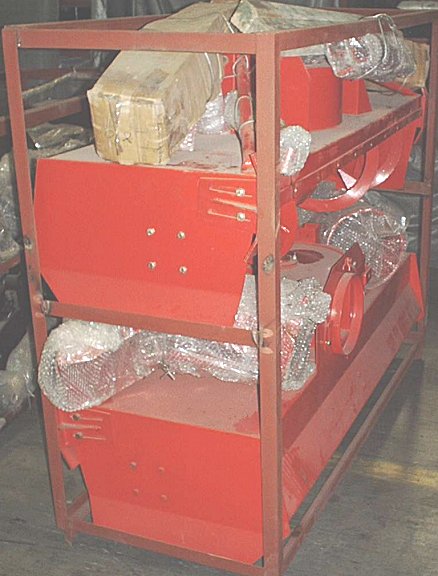

SNOW
BLOWERS OUT OF STOCK. Minor assembly required

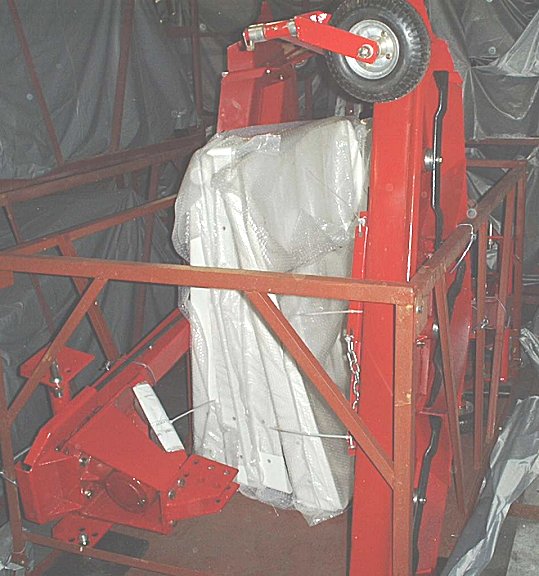

BELLY MOWERS OUT
OF STOCK. Minor assembly required
