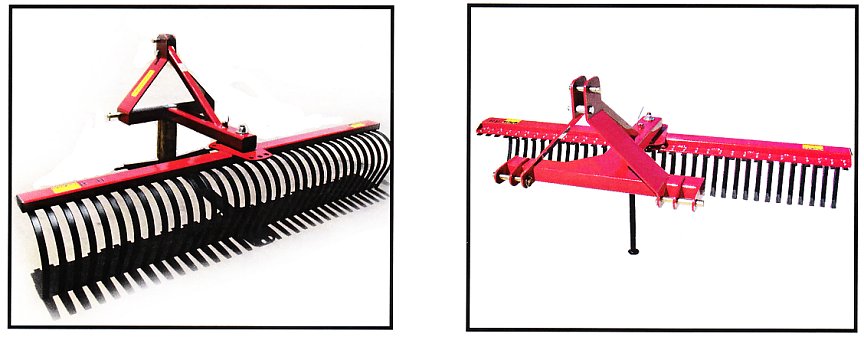

V
- Series Landscape Rake
|
|
This landscape rake is built for tough
work. It will accurately level, fill, move and smoothly rake soil and
crushed stone for seed beds on small and large jobs. The teeth are
spaced 1.5 inches apart enabling the operator to remove rock and
undesired debris from finely prepared seed beds. The 5 forward and 3
reverse positions enable the operator to change the angle of the rake
for side delivery. The sturdy A-frame with the heavy 3 X 4 X 1/4 inch
tubular main beam pivots on a greasable 2 inch kingpin. The teeth are
designed with two bolt holes for strength and are heat treated alloy
steel for proper flexing, making them strong and durable for long
wear. A 1.5 inch spacing is between each tooth. This gives control of
the size of the material that flows through the teeth. Every other
tooth can also be removed to reduce the amount of material removed.
|
|
|
FEATURES:
|
- 8 easily adjustable position
settings for added versatility
- Tines are 3/8 X 1 1/4 tempered
steel with double bolt attachment to reduce misalignment of
tines
- 5/16 X 1 tempered steel tines
optional on 5' and 6'
- Optional wheel adapter kits
available
- Available in 5', 6', 7', and 8'
models
|
|

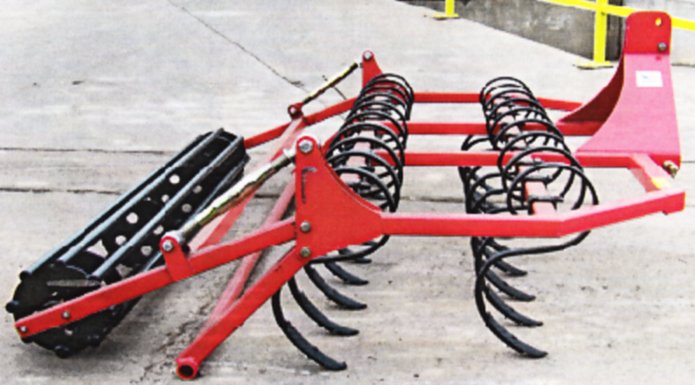

ARENA GROOMER--NEW!!
|
|
| Model |
Width |
HP |
| AG 72 |
6' |
30-40 HP |
| AG 84 |
7' |
40-50 HP |
| AG 96 |
8' |
50-75 HP |
|
|
PRICES
|
| Part
No. |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 560406 |
LANDSCAPE
RAKE 6' R2-6 CAT 1 3/8" X 1¼" TINE |
280 |
$655.00
USD |
| 560407 |
LANDSCAPE
RAKE 7' R2-7 CAT 1 3/8" X 1¼" TINE |
308 |
$705.00
USD |
| 560408 |
LANDSCAPE
RAKE 8' R2-8 CAT 1 3/8" X 1¼" TINE |
329 |
$755.00
USD |
| 560415 |
LANDSCAPE
RAKE 5' 5/16" X 1" TINE |
190 |
$505.00
USD |
| 560416 |
LANDSCAPE
RAKE 6' 5/16" X 1" TINE |
230 |
$565.00
USD |
| 560427 |
LANDSCAPE
RAKE 7' R3-7 CAT 1&2 3/8" X 1¼" TINE |
330 |
$815.00
USD |
| 560428 |
LANDSCAPE
RAKE 8' R3-8 CAT 1&2 3/8" X 1¼" TINE |
342 |
$865.00
USD |
| 562005 |
ARENA GROOMER 5'
AG 60 |
665 |
$1,635.00
USD |
| 562006 |
ARENA GROOMER 6'
AG 72 |
700 |
$1,945.00
USD |
| 562007 |
ARENA GROOMER 7'
AG 84 |
738 |
$2,225.00
USD |
| 562008 |
ARENA GROOMER 8'
AG 96 |
776 |
$2,590.00
USD |
|
|
|
|
|
