China Depot V-Series Replacement Buckets

V - Series Replacement Buckets
Replacement Loader Buckets, Rock Buckets, Skid Steer Buckets

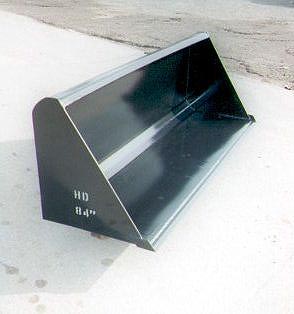

REPLACEMENT LOADER BUCKETS

Four brackets, two angles and two flat straps are furnished as standard parts with each bucket for mounting on pin type loaders.

Back of bucket showing reinforcing angle and different types of brackets that can be welded on.

Four brackets, two angles and two flat straps are furnished as standard parts with each bucket for mounting on pin type loaders.

Three models available covering various HP tractors.

ROCK BUCKET

• Designed for removing debris, trash, and rocks
• 3/8" steel construction with 3/4" - 4" tines
• Built to hold even the small rocks

SKID STEER BUCKET

Special Low Profile Bucket for Better Visibility
V-Series Skid Steer loader buckets are engineered to out-perform other buckets due to their design. The basic bucket is formed out of one sheet of steel. The bucket ends are heavy-gauge steel and fully welded to the back for extra strength. The cutting edges are welded to the front of the bucket and reinforced with wear plates. This gives the cutting edges extra strength and provides longer life to the bucket bottom. A formed angle is welded to the bucket back to help carry the mounting bracket giving extra rigidity to the mounting brackets.
Various models are available covering a range of Skid Steer sizes.

PRICES

REPLACEMENT FRONT LOADER BUCKET

Part No.	Description	Wt.	Retail Price (Add Freight)
390505*	FRONT LOADER BKT. 5'	238	$599.00 USD
390506*	FRONT LOADER BKT. 6'	252	$630.00 USD
390507*	FRONT LOADER BKT. 7'	275	$720.00 USD
390605*	FRONT LOADER BKT. 5' ESTATE	119	$425.00 USD
390659*	FRONT LOADER BKT. 8' HVY DUTY	507	$1,390.00 USD

TM* Mounting bracket must be added

ROCK BUCKETS

Part No.	Description	Capacity	Wt.	Retail Price (Add Freight)
400305	ROCK BUCKET 5' SKID STEER	1/2 YARD	510	TBD USD
400306	ROCK BUCKET 6' SKID STEER	3/4 YARD	600
400315*	ROCK BUCKET 5' TRACTOR MOUNT	1/2 YARD	470
400316*	ROCK BUCKET 6' TRACTOR MOUNT	3/4 YARD	550

TM* Mounting bracket must be added

SKID STEER BUCKET

Part No.	Description	Wt.	Retail Price (Add Freight)
390905	5' SKID STEER BUCKET 20" H X 34" D X 5' L	485	$1,285.00 USD
390906	6' SKID STEER BUCKET 20" H X 34" D X 6' L	515	$1,400.00 USD
