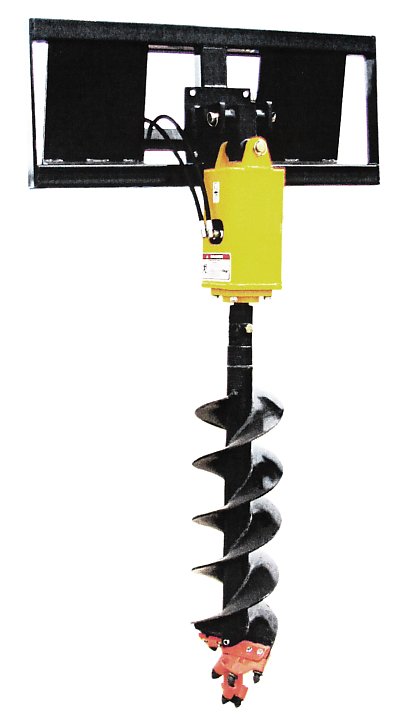

The V-Series hydraulic post hole digger is available in two sizes (Models
700200 and 700300) for systems operating 10 to 30 GPM and between 2000 to 3000
PSI. Refer to Model specifications to determine the model best suited for your
needs.
The auger drives are designed with a planetary gearbox to eliminate chain
and sprocket reductions found on drives in this class and price range. The
rugged drive will give better service since all rotating parts are sealed away
from harmful dirt and debris, and fully running in oil. These compact units are
designed to give exceptional service under average digging conditions. The auger
rotation can be reversed to free it if it becomes caught under an obstruction.
|
|
|
MODEL 700200
|
MODEL 700300
|
| SPECIFICATIONS |
| Maximum Output
Torque |
1775 ft-lbs |
| Recommended Fluid
Flow |
10-20 gpm |
| Maximum
Pressure-Continuous |
3000 psi |
| Recommended Max
Auger Diameter/Rock Head |
9 in. |
| Recommended Max
Auger Diameter/ Dirt Auger |
30 in. |
|
| SPECIFICATIONS |
| Maximum Output
Torque |
2623 ft.-lbs. |
| Recommended Fluid
Flow |
15-30 gpm |
| Maximum
Pressure-Continuous |
3000 psi |
| Recommended Max
Auger Diameter/Rock Head |
12 in. |
| Recommended Max
Auger Diameter/ Dirt Auger |
36 in. |
|
| OUTPUT
SPEED |
| Flow |
Speed |
| GPM |
RPM |
| 10 |
52 |
| 12 |
62 |
| 14 |
73 |
| 16 |
83 |
| 18 |
93 |
| 20 |
104 |
|
| OUTPUT
SPEED |
| Flow |
Speed |
| GPM |
RPM |
| 15 |
53 |
| 18 |
63 |
| 20 |
70 |
| 24 |
84 |
| 28 |
101 |
| 30 |
108 |
|
| OUTPUT
TORQUE |
| Pressure |
Torque |
| PSI |
LB/FT |
| 2000 |
1185 |
| 2500 |
1481 |
| 3000 |
1777 |
|
| OUTPUT
TORQUE |
| Pressure |
Torque |
| PSI |
LB/FT |
| 2000 |
1748 |
| 2500 |
2185 |
| 3000 |
2623 |
|
|
HYDRAULIC POST HOLE DIGGER COMPONENTS
|
|
|
|
|
|
|
|
|
|
|
| MODEL
700200 |
| Comp. |
Description |
Part
# |
| Complete
200 Series Post Hole Digger Requires ONE Component A |
| A |
Hydraulic Digger
Assembly - 200 Series |
700200 |
| Complete
200 Series Post Hole Digger Requires ONE Component B |
| B |
Mount Kit T.M. |
700104 |
| B |
Mount Kit S.S. |
700105 |
| B |
Mount Kit T.M. with
Frame |
700106 |
| Complete
200 Series Post Hole Digger Requires ONE Component C |
| C |
6" HEX SHAFT
AUGER |
PH135546 |
| C |
9" HEX SHAFT
AUGER |
PH135547 |
| C |
12" HEX SHAFT
AUGER |
PH135548 |
| C |
15" HEX SHAFT
AUGER |
PH135549 |
| C |
18" HEX SHAFT
AUGER |
PH135550 |
| C |
24" HEX SHAFT
AUGER |
PH135551 |
|
| MODEL
700300 |
| Comp. |
Description |
Part
# |
| Complete
300 Series Post Hole Digger Requires ONE Component A |
| A |
Hydraulic Digger
Assembly - 300 Series |
700300 |
| Complete
300 Series Post Hole Digger Requires ONE Component B |
| B |
Mount Kit T.M. |
700104 |
| B |
Mount Kit S.S. |
700105 |
| B |
Mount Kit T.M. with
Frame |
700106 |
| Complete
300 Series Post Hole Digger Requires ONE Component C |
| C |
6" HEX SHAFT
AUGER |
PH135546 |
| C |
9" HEX SHAFT
AUGER |
PH135547 |
| C |
12" HEX SHAFT
AUGER |
PH135548 |
| C |
15" HEX SHAFT
AUGER |
PH135549 |
| C |
18" HEX SHAFT
AUGER |
PH135550 |
| C |
24" HEX SHAFT
AUGER |
PH135551 |
| C |
30" HEX SHAFT
AUGER |
PH135552 |
| C |
36" HEX SHAFT
AUGER |
PH135553 |
|
| Optional
and Replacement Components for 200 & 300 Series:
D (Rock Head), E (Pilot
Bits), F (Tooth), G (Auger) |
| Component |
|
Part
# |
| D |
OPTIONAL 6"
ROCK HEAD |
137991 |
| D |
OPTIONAL 9"
ROCK HEAD |
137992 |
| D |
OPTIONAL 12"
ROCK HEAD (300 SERIES ONLY) |
137993 |
| E |
REPLACEMENT PILOT
BIT |
P135088 |
| E |
OPTIONAL PILOT BIT
CARBIDE |
P135090 |
| F |
REPLACEMENT DIRT
TOOTH |
P134501 |
| F |
OPTIONAL DIRT TOOTH
H.S. |
P134802 |
| F |
OPTIONAL DIRT TOOTH
CARBIDE |
P134519 |
| F |
REPLACEMENT CARBIDE
BULLET TOOTH (ROCK HEAD) |
P137990 |
| G |
OPTIONAL AUGER:
T-POST DRILL 2" HEX |
700038 |
| G |
REPLACEMENT CP/16
CARBIDE PILOT BIT (FOR T-POST AUGER ONLY) |
700037 |
|
|
PRICES
|
|
HYDRAULIC POST HOLE
DIGGERS
|
| Part
Number |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 700200 |
HYDRAULIC
DIGGER ASSEMBLY (CAP 6" TO 18" DIRT AUGER AND NO ROCK AUGER) |
125 |
$1,740.00
USD* |
| 700300 |
HYDRAULIC
DIGGER ASSEMBLY (CAP 6" TO 36" DIRT AUGER AND 6" TO
18" ROCK AUGER) |
125 |
$1,835.00
USD* |
|
|
* Auger
& mount prices
must be added to this price
|
|
HEAVY DUTY AUGER
PARTS
|
| Part
Number |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| P135088 |
PILOT BIT |
6 |
$30.00 USD |
| P135090 |
CARBIDE
PILOT BIT |
6 |
$92.00
USD |
| P133835 |
TOOTH, DIRT |
1 |
$3.00 USD |
| P140027 |
TOOTH, DIRT GAGE |
1 |
$6.00 USD |
| P140029 |
TOOTH, CHISEL |
1 |
$5.00 USD |
| P140007 |
TOOTH, CARBIDE |
1 |
$16.00 USD |
| PH134501 |
TOOTH, DIRT |
1 |
$5.00 USD |
| PH134519 |
TOOTH, CARBIDE |
1 |
$24.00
USD |
|
|
T-POST DRILL
|
| Part
Number |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 700035 |
T-POST
DRILL 2" ROUND 1-5/8" BAR WITH CARBIDE TIP |
23 |
$370.00 USD |
| 700036 |
T-POST
DRILL 2-9/16" ROUND 1-5/8" SOLID BAR WITH CARBIDE TIP |
23 |
$370.00 USD |
| 700037 |
CP/16
CARBIDE PILOT BIT |
3 |
$110.00 USD |
|
|
HYDRAULIC DIGGER ASSEMBLY MOUNT
|
| Part
Number |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 700104 |
MOUNT
KIT TM |
57 |
$242.00
USD |
| 700105 |
MOUNT
KIT SS |
149 |
$698.00
USD |
|
|
HEAVY
DUTY AUGERS FOR HYDRAULIC DIGGERS
|
| Part
Number |
Description |
Weight |
Retail
Price (Add Freight) |
| PH135546 |
6" HEX
SHAFT AUGER |
44 |
$375.00 USD |
| 137991 |
OPTIONAL 6"
ROCK HEAD |
|
$440.00 USD |
| PH135547 |
9" HEX
SHAFT AUGER |
48 |
$525.00 USD |
| 137992 |
OPTIONAL 9"
ROCK HEAD |
|
$540.00 USD |
| PH135548 |
12" HEX
SHAFT AUGER |
56 |
$585.00 USD |
| 137993 |
OPTIONAL
12" ROCK HEAD |
|
$590.00 USD |
| PH135549 |
15" HEX
SHAFT AUGER |
117 |
$740.00 USD |
| 137994 |
OPTIONAL
15" ROCK HEAD |
|
$625.00 USD |
| PH135550 |
18" HEX
SHAFT AUGER |
145 |
$850.00 USD |
| 137995 |
OPTIONAL
18" ROCK HEAD |
|
$660.00 USD |
| PH 135551 |
24" HEX
SHAFT AUGER |
215 |
$985.00 USD |
| 137996 |
OPTIONAL
24" ROCK HEAD |
|
$775.00 USD |
| PH135552 |
30" HEX
SHAFT AUGER |
286 |
$1,400.00 USD |
| PH135553 |
36" HEX
SHAFT AUGER |
385 |
$1,685.00USD |
|
|
SUPER
DUTY ROCK AUGER (2" HEX SHAFT)
|
| Part
Number |
Description |
Weight |
Retail
Price (Add Freight) |
| C09008 |
AUGER SUPER DUTY
ROCK 9" X 48" |
102 |
$1,410.00 USD |
| C12008 |
AUGER SUPER DUTY
ROCK 12" X 48" |
107 |
$1,710.00 USD |
| C30008 |
AUGER SUPER DUTY
ROCK 30" X 48" |
340 |
$2,920.00 USD |
| C36008 |
AUGER SUPER DUTY
ROCK 36" X 48" |
395 |
$3,410.00 USD |
| 700038 |
T-POST
DRILL 2" HEX 1-5/8" SOLID BAR WITH CARBIDE TIP |
24 |
$370.00 USD |
|
|
|
